M Metal Tubes India Pvt Ltd is Prominent Supplier and Exporter of high quality Male Elbow NPT MEN (Imperial Series), which are using high quality raw material. We offer Stainless Steel 304, 316 Male Elbow NPT MEN that are using national and international standards. We have developed a very broad range of products which serve a large variety of service applications in different sectors of the industry. These are used in a wide range of application like Petrochemicals, Energy, CNG, Pharmaceutical, Pulp and Paper, Food, Mining, Biotechnology, Marine, Packing and Printing Industries etc.
Brass Male Elbow NPT MEN, Bronze Male Elbow NPT MEN, SS 316 Male Elbow NPT MEN Dealer, CS Male Elbow NPT MEN Manufacturer & Wholesaler, Tube to Union - Male Elbow NPT MEN BU Supplier in India.

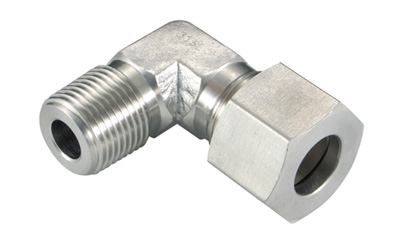

Stainless Steel Male Elbow NPT MEN

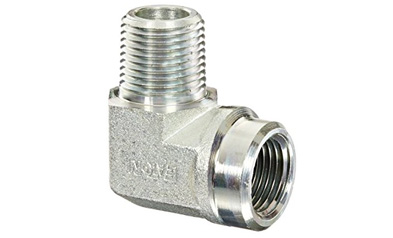

Monel Male Elbow NPT MEN
Male Elbow NPT – Imperial Tubing |
|||||||||||||
Tube O.D inch |
NPT thread | Part Number | C | H | L | R | W | Min bore |
|||||
inch | mm | inch | mm | inch | mm | inch | mm | inch | inch | mm | |||
1/16 | 1/16 | 1ME1N | 0.70 | 18.3 | 0.72 | 18.3 | 0.56 | 14.2 | 0.38 | 9.7 | 5/16 | 0.05 | 1.3 |
1/16 | 1/8 | 1ME2N | 0.70 | 18.3 | 0.72 | 18.3 | 0.56 | 14.2 | 0.38 | 9.7 | 5/16 | 0.05 | 1.3 |
1/8 | 1/8 | 2ME2N | 0.91 | 23.1 | 0.72 | 18.3 | 0.66 | 16.8 | 0.38 | 9.7 | 5/16 | 0.09 | 2.3 |
1/8 | 1/4 | 2ME4N | 0.97 | 24.6 | 0.94 | 23.9 | 0.72 | 18.3 | 0.56 | 14.2 | 9/16 | 0.09 | 2.3 |
3/16 | 1/8 | 3ME2N | 0.94 | 23.9 | 0.75 | 19.1 | 0.69 | 17.5 | 0.38 | 9.7 | 7/16 | 0.13 | 3.3 |
1/4 | 1/8 | 4ME2N | 1.02 | 25.9 | 0.78 | 19.8 | 0.72 | 18.3 | 0.38 | 9.7 | 7/16 | 0.19 | 4.8 |
1/4 | 1/4 | 4ME4N | 1.08 | 27.4 | 0.94 | 23.9 | 0.78 | 19.8 | 0.56 | 14.2 | 9/16 | 0.19 | 4.8 |
1/4 | 3/8 | 4ME6N | 1.18 | 30.0 | 1.13 | 28.7 | 0.88 | 22.4 | 0.56 | 14.2 | 3/4 | 0.19 | 4.8 |
1/4 | 1/2 | 4ME8N | 1.27 | 32.3 | 1.31 | 33.3 | 0.97 | 24.6 | 0.75 | 19.1 |
