Check Valves

SS Swing Check Valves / Monel Diaphragm Check Valves / SS Check Valve

Home
Products

Hastelloy Lift Check Valves Supplier, Ductile and Alloy Iron Check Valve Stockist, Cast Iron Check Valves Exporter.

Check Valves are an essential product offered by M Metal Tubes India Pvt Ltd that helps customers in ways more than one.

SS Check Valves are automatic valves that open with the forward flow of the fluid and close with the reverse flow. The pressure applied by the liquid that passes through the system opens up the valve. On the other hand, any reversal flow will close this valve. Stainless Steel Check Valves are of two types; Swing Check Valve and Lift Check Valve. Duplex Steel Check Valves maintain pressure and prevent backflow. They are commonly used as a backup in case a pump fails to function. Some other uncommon types of Check Valves are Ball Check Valve, Water Check Valve, Umbrella Check Valve, etc.

Stainless Steel Check Valves Dealer, Alloy Steel Check Valve, Carbon Steel Check Valves Wholesaler, Bronze Check Valves Stockist.

Check Valves - Super Duplex Steel Check Valves, Nickel Alloy Check Valve, Hastelloy Alloy Check Valve Distributor, Incoloy Alloy Check Valves, Inconel Check Valves, SS Swing Check Valves Stockist, Monel Diaphragm Check Valve, Hastelloy Lift Check Valves Distributor, Ductile and Alloy Iron Check Valve Suppliers, Cast Iron Check Valves Distributor
40 years of Committed Experience in Check Valves.
M Metal Tubes India Pvt Ltd Supplier & Exporter Valves In World Wide

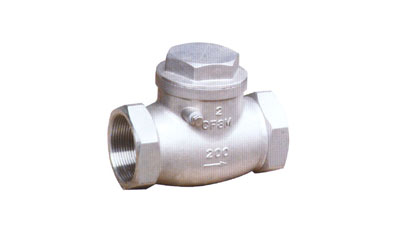

SS Check Valves

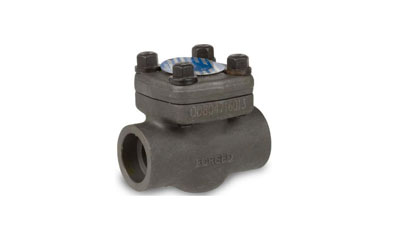

CS Swing Check Valve

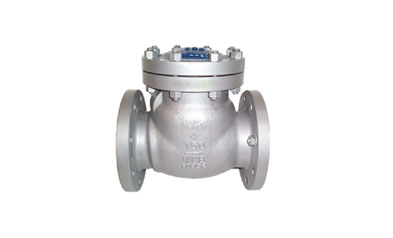

AS Check Valves

All these types of Check Valves are supplied by Metal Tubes India to their clients along with services that give customers assured quality and loyalty.

For Any Query : Contact Us

Specification :

Manufacturer of WAO-LOC

MATERIAL : CS-105, AS-F11, F12, S.S.-304, 304 L, 316, 316 L

GLAND PACKING : Graphite Asbestos, Inconel, Teflon asbestos, PTFE STEM

SPINDLE : AISI 316 / AISI 410

TYPE : Screwed, S/W. and Flanged

END CONDITION : Screwed to ANSI B2.1 / IS 554 / Socket Weld Ends. ANSI B16. 11 / IS 4712 / Butt Weld to ANSI B 16.25 / Flanged according to ANSI-B 16.5 / BS 1560

DETAILS OF TESTS : BODY (HYD) / SEAT (HYD) / SEAT ( AIR )

TEST PRESSURE : 211kg / Cm2 i.e 3000 psi / 141kg / Cm2 i.e 2000 psi / 5.6 kg / Cm2 i.e 80 psi

Delivery :

Delivery Condition : Annealed and Pickled, Polished, Bright Annealed, Cold Drawn

Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports

Product Range For Cast And Forged Swing Check Valves :

Valve Type	Class Rating	Size Range	Shell Material As Per Specification
Swing Check	150#	2" to 36"	ASTM A216 Gr. WCB ASTM A217 Gr. WC1 ASTM A217 Gr. WC6 ASTM A217 Gr. WC9 ASTM A217 Gr. C5 ASTM A217 Gr. C12 ASTM A351 Gr. F8 ASTM A351 Gr. F3 ASTM A351 Gr. F8M ASTM A351 Gr. CF3M ASTM A351 Gr. CN7M ASTM A351 Gr. CF8C ASTM A351 Gr. CD4Mcu ASTM A351 Gr. CK3MCuN ASTM A352 Gr. LCA ASTM A352 Gr. LCB ASTM A352 Gr. LCC ASTM A494 Gr. CW6MC ASTM A494 Gr. CW2M ASTM A494 Gr. CW2M ASTM A494 Gr. CY40 ASTM A494 Gr. CU5MCuC ASTM A995 Gr. 1A ASTM A995 Gr. 4A ASTM A995 Gr. 5A ASTM A995 Gr. 6A NACE malt. Grade to NACE MR0175/NACE MR
Swing Check	300#	2" to 36"
Swing Check	600#	2" to 32"
Swing Check	800#	1/2" to 2"
Swing Check - PRESSURE SEAL	900#	1/2" to 20"
SWING CHECK - PRESSURE SEAL	1500#	1/2" to 20"
Note : Valves Can be Supplied With Actuator, Pad Lock and Other Accessories Like Limit Switch, Position Indicator, Solenoid Valve as Per Requirement Stem Extention, Underground Service Features are Available

Standards :

Design Standard	BS 1868
Testing Standard	BS EN 12266 – 1
Face To Face	ASME B 16.10
End Connection	Flanged End - ASME B 16.5 Butt Weld End – ASME B 16.25
Pressure – Temperature Chart	ASME B 16.34

Material :

STRUCTURE	End Connection	Flanged End Raised Face, Butt Weld End, RTJ,. ETC
MATERIAL	Shell	WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel
	Trim	13% Cr Steel, 304 , 304L, 316, 316L, 321, 347, F51, Monel
