Metal Tubes India is engaged in Industrial supplies can offer wide range of Stainless Steel, Monel, Hastelloy, Mild Steel, Carbon Steel, Brass and Bronze Parts from ready stock or on make to order basis are currently supplying to all over Globe. These Bulkhead Union is used to transition through the wall of a control box or machine member. The SS Bulkhead Union permits a smooth transition point from one side to another. Metal Tubes India is widely supplier and exporter of best quality Bulkhead Union in India.
CS Bulkhead Union Manufacturer, SS 316 Bulkhead Union Dealer, Bronze Bulkhead Union, 400 Monel Alloy Bulkhead Union Exporter, Brass Bulkhead Union Wholesaler, Hastelloy C276 Bulkhead Union Stockist.

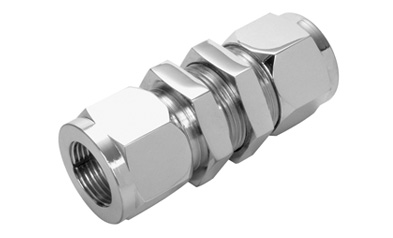

Hastelloy Bulkhead Union

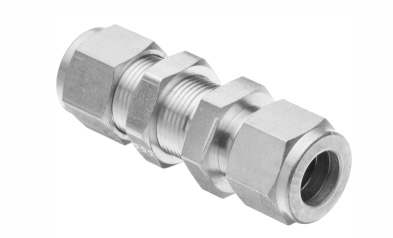

Monel Bulkhead Union
Bulkhead Union – Metric Tubing |
|||||||||||||||||
Tube O.D mm |
Part Number | A | C1 | C2 | D | L | W inch |
B’head hole drill size mm
|
Max b’head thichness mm | Min bore | |||||||
mm | mm | mm | mm | mm | mm | ||||||||||||
3 | 3MBUMTI | 51.3 | 15.3 | 31.2 | 38.2 | 24.6 | 1/2 | 8.3 | 12.7 | 2.4 | |||||||
4 | 4MBUMTI | 53.7 | 16.1 | 32.0 | 40.5 | 25.4 | 9/16 | 9.9 | 12.7 | 3.0 | |||||||
6 | 6MBUMTI | 57.9 | 17.7 | 33.7 | 42.9 | 26.2 | 5/8 | 11.5 | 10.2 | 4.8 | |||||||
8 | 8MBUMTI | 61.0 | 18.6 | 36.0 | 46.0 | 28.5 | 11/16 | 13.1 | 11.2 | 6.4 | |||||||
10 | 10MBUMTI | 63.6 | 19.5 | 37.0 | 48.4 | 29.4 | 13/16 | 16.3 | 11.2 | 7.9 | |||||||
12 | 12MBUMTI | 71.0 | 22.0 | 41.9 | 50.8 | 31.8 | 15/16 | 19.5 | 12.7 | 9.5 | |||||||
16 | 16MBUMTI | 72.6 | 22.0 | 42.6 | 52.4 | 32.5 | 1.1/16 | 22.5 | 12.7 | 12.7 | |||||||
18 | 18MBUMTI |
Bulkhead Union – Imperial Tubing |
||||||||||||||||||
Tube O.D inch | Part Number | A | C1 | C2 | D | L | W inch | B’head hole drill size | Max b’head thickness | Min bore | ||||||||
inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | |||
1/16 | 1BU1 | 1.22 | 31.0 | 0.43 | 10.9 | 0.67 | 17.0 | 0.94 | 23.9 | 0.53 | 13.5 | 5/16 | 13/64 | 5.2 | 0.12 | 3.1 | 0.05 | 1.3 |
1/8 | 2BU2 | 2.00 | 50.8 | 0.60 | 15.2 | 1.22 | 31.0 | 1.50 | 38.1 | 0.97 | 24.6 | 1/2 | 21/64 | 8.3 | 0.50 | 12.7 | 0.09 | 2.3 |
3/16 | 3BU3 | 2.09 | 53.1 | 0.63 | 16.0 | 1.25 | 31.8 | 1.59 | 40.4 | 1.00 | 25.4 | 9/16 | 25/64 | 9.9 | 0.50 | 12.7 | 0.13 | 3.3 |
1/4 | 4BU4 | 2.28 | 57.9 | 0.70 | 17.8 | 1.33 | 33.8 | 1.69 | 42.3 | 1.03 | 26.2 | 5/8 | 29/64 | 11.5 | 0.40 | 10.2 | 0.19 | 4.8 |
5/16 | 5BU5 | 2.40 | 61.0 | 0.73 | 18.6 | 1.41 | 35.8 | 1.81 | 46.0 | 1.12 | 28.5 | 11/16 | 33/64 | 13.1 | 0.44 | 11.2 | 0.25 | 6.4 |
3/8 | 6BU6 | 2.47 | 62.7 | 0.76 | 19.3 | 1.45 | 36.8 | 1.88 | 47.8 | 1.16 | 29.5 | 3/4 | 37/64 | 14.7 | 0.44 | 11.2 | 0.28 | 7.1 |
1/2 | 8BU8 | 2.77 | 70.4 | 0.86 |
