M Metal Tubes India Pvt Ltd is one of the leading supplier, stockholder and exporter of Union Elbow in India. These Stainless Steel Union Elbow of ours have been well demanded and extensively used by the clients of diverse category in different size. We make use of the latest machines and best technology to the Union Elbow made available by us. These are widely used in equipment and utensils for handling of food, processing, beverages and dairy products.
CS Union Elbow Manufacturer, SS 316 Union Elbow Dealer, Bronze Union Elbow, 400 Monel Alloy Union Elbow Exporter, Brass Union Elbow Wholesaler, Hastelloy C276 Union Elbow Stockist.

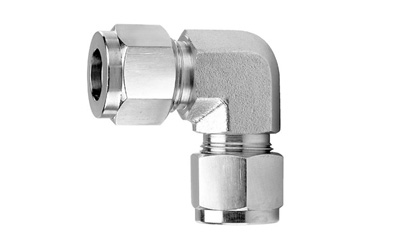

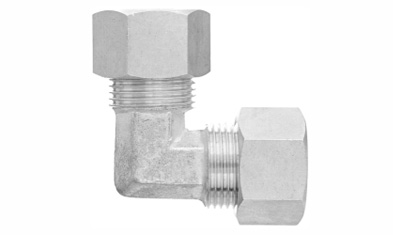

Stainless Steel Union Elbow
Monel Union Elbow
Union Elbow - Metric tubing |
||||||||||
Tube O.D (mm) |
Part Number | C | L | W (inch) |
Min. bore ( mm) |
|||||
mm | mm | |||||||||
3 | 3MUMTIE | 23.3 | 16.7 | 5/16 | 2.4 | |||||
4 | 4MUMTIE | 24.1 | 17.5 | 5/16 | 3.0 | |||||
6 | 6MUMTIE | 25.8 | 18.3 | 7/16 | 4.8 | |||||
8 | 8MUMTIE | 28.1 | 20.6 | 9/16 | 6.4 | |||||
10 | 10MUMTIE | 33.0 | 25.4 | 3/4 | 7.9 | |||||
12 | 12MUMTIE | 34.7 | 24.6 | 3/4 | 9.5 | |||||
16 | 16MUMTIE | 37.1 | 27.0 | 7/8 | 12.7 | |||||
18 | 18MUMTIE | 39.5 | 29.4 | 1.1/16 | 15.1 | |||||
20 | 20MUMTIE | 42.6 | 32.5 | 1.5/16 | 15.9 | |||||
25 | 25MUMTIE | 45.6 | 33.3 | 1.5/16 | 22.2 |
Union Elbow – Imperial tubing |
||||||||||
Tube O.D (inch) |
Part Number | C | L | W (inch) |
Min. bore | |||||
inch | mm | inch | mm | inch | mm | |||||
1/16 | IUEMTI1 | 0.70 | 17.8 | 0.56 | 14.2 | 5/16 | 0.05 | 1.3 | ||
1/8 | 2UEMTI2 | 0.61 | 23.1 | 0.66 | 16.8 | 5/16 | 0.09 | 2.3 | ||
3/16 | 3UEMTI3 | 0.94 | 23.9 | 0.69 | 17.5 | 7/16 | 0.13 | 3.3 | ||
1/4 | 4UEMTI4 | 1.02 | 25.9 | 0.72 | 18.3 | 7/16 | 0.19 | 4.8 | ||
5/16 | 5UEMTI5 | 1.10 | 27.9 | 0.81 | 20.6 | 9/16 | 0.25 | 6.4 | ||
3/8 | 6UEMTI6 | 1.13 | 28.7 | 0.84 | 21.3 | 9/16 | 0.28 | 7.1 | ||
1/2 | 8UEMTI8 | 1.35 | 34.3 | 0.97 | 24.6 | 3/4 | 0.41 | 10.4 | ||
5/8 | 10UEMTI10 | 1.44 | 36.6 | 1.06 | 26.9 | 7/8 | 0.50 | 12.7 | ||
3/4 | 12UEMTI12 | 1.54 | 39.1 | 1.16 | 29.5 | 1.1/16 | 0.63 | 16.0 | ||
7/8 | 14UEMTI14 | 1.66 | 42.2 | 1.28 | 32.5 | 1.5/16 | 0.75 | 19.1 | ||
1 | 16UEMTI14 | 1.78 | 45.2 | 1.31 | 33.3 | 1.5/16 | 0.88 | 22.4 |
