We are one of the leading Supplier and Exporter of high quality Female Branch Tee which are using high quality raw material. This offered product is made using optimum quality material and advanced technology for longevity. We offer Stainless Steel 304, 316 Female Branch Tee that are using national and international standards. These are used in a wide range of application like Petrochemicals, Energy, CNG, Pharmaceutical, Pulp and Paper, Food, Mining, Biotechnology, Marine, Packing and Printing Industries etc.
Brass Female Branch Tee, Monel Female Branch Tee NPT FBTN Dealer, SS 316 Female Branch Tee NPT FBTN, Hastelloy Female Branch Tee NPT FBTN Exporter, Bronze Female Branch Tee NPT FBTN Wholesaler, Stockist in India.

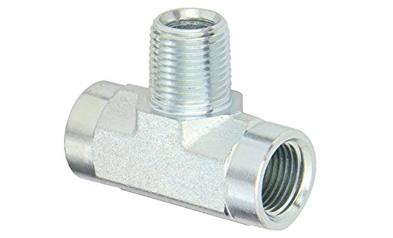

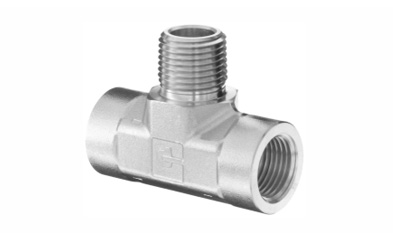

Stainless Steel Female Branch Tee NPT FBTN
Monel Female Branch Tee NPT FBTN
Metric tubing |
||||||||||||||
Tube O.D inch |
NPT thread | Part Number | A | C | H | L | W | Min bore | ||||||
inch | mm | inch | mm | inch | mm | inch | mm | inch | inch | |||||
3 | 1/8 | 3MFBT1/8N | 2.00 | 50.80 | 1.00 | 25.40 | 0.75 | 19.05 | 0.75 | 19.05 | 9/16 | 0.09 | ||
6 | 1/8 | 6MFBT1/8N | 2.16 | 54.86 | 1.08 | 27.43 | 0.75 | 19.05 | 0.78 | 19.81 | 9/16 | 0.19 | ||
6 | 1/4 | 6MFBT1/4N | 2.42 | 61.47 | 1.21 | 30.73 | 0.84 | 21.34 | 0.91 | 23.11 | 3/4 | 0.19 | ||
8 | 1/8 | 8MFBT1/8N | 2.26 | 57.40 | 1.13 | 28.70 | 0.75 | 19.05 | 0.84 | 21.34 | 9/16 | 0.25 | ||
10 | 1/4 | 10MFBT1/4N | 2.52 | 64.01 | 1.26 | 32.00 | 0.84 | 21.34 | 0.97 | 24.64 | 3/4 | 0.28 | ||
12 | 3/8 | 12MFBT3/8N | 2.82 | 71.63 | 1.41 | 35.81 | 0.91 | 23.11 | 1.03 | 26.16 | 7/8 | 0.41 | ||
12 | 1/2 | 12MFBT1/2N | 3.02 | 76.71 | 1.51 | 38.35 | 1.13 | 28.70 | 1.13 | 28.70 | 1.1/16 | 0.41 | ||
20 | 3/4 | 20MFBT13/4N | 3.26 | 82.80 | 1.63 | 41.40 | 1.25 | 31.75 | 1.25 | 31.75 | 1.5/16 | 0.63 | ||
25 | 3/4 | 25MFBT13/4N | 3.56 | 90.42 | 1.78 | 45.21 | 1.25 | 31.75 | 1.31 | 33.27 | 1.5/16 | 0.88 | ||
25 | 1 | 25MFBT1/1N | 4.00 | 101.60 | 2.00 | 50.80 | 1.50 | 38.10 | 1.53 | 38.86 | 1.5/8 | 0.88 |
Imperial tubing | ||||||||||||||
Tube O.D inch | NPT thread | Part Number | A | C | H | L | W | Min bore | ||||||
inch | mm | inch | mm | inch | mm | inch | mm | inch | inch | |||||
1/8 | 1/8 | 2FBT2N | 2.00 | 50.80 | 1.00 | 25.40 | 0.75 | 19.05 | 0.75 | 19.05 | 9/16 | 0.09 | ||
3/16 | 1/8 | 3FBT2N | 2.00 | 50.80 | 1.00 | 25.40 | 0.75 | 19.05 | 0.75 | 19.05 | 9/16 | 0.13 | ||
1/4 | 1/8 | 4FBT2N | 2.16 | 54.86 | 1.08 | 27.43 | 0.75 | 19.05 | 0.78 | 19.81 | 9/16 | 0.19 | ||
1/4 | 1/4 | 4FBT4N | 2.42 | 61.47 | 1.21 | 30.73 | 0.84 | 21.34 | 0.91 | 23.11 | 3/4 | 0.19 | ||
5/16 | 1/8 | 5FBT2N | 2.26 | 57.40 | 1.13 | 28.70 | 0.75 | 19.05 | 0.84 | 21.34 | 9/16 | 0.25 | ||
3/8 | 1/4 | 6FBT4N | 2.52 | 64.01 | 1.26 | 32.00 | 0.84 | 21.34 | 0.97 | 24.64 | 3/4 | 0.28 | ||
1/2 | 3/8 | 8FBT6N | 2.82 | 71.63 | 1.41 | 35.81 | 0.91 | 23.11 | 1.03 | 26.16 | 7/8 | 0.41 | ||
1/2 | 1/2 | 8FBT8N | 3.02 | 76.71 | 1.51 | 38.35 | 1.13 | 28.70 | 1.13 | 28.70 | 1.1/16 | 0.41 | ||
5/8 | 1/2 | 10FBT8N | 3.02 | 76.71 | 1.51 | 38.35 | 1.13 | 28.70 | 1.13 | 28.70 | 1.1/16 | 0.50 | ||
3/4 | 3/4 | 12FBT12N | 3.26 | 82.80 | 1.63 | 41.40 | 1.25 | 31.75 | 1.25 | 31.75 | 1.5/16 | 0.63 | ||
7/8 | 3/4 | 14FBT12N | 3.26 | 82.80 | 1.63 | 41.40 | 1.25 | 31.75 | 1.25 | 31.75 | 1.5/16 | 0.75 | ||
1 | 3/4 | 16FBT12N | 3.56 | 90.42 | 1.78 | 45.21 | 1.25 | 31.75 | 1.31& |
