Female Bulkhead Connector NPT FBCN & MFBCN

Female Bulkhead Connector / MS Female Bulkhead Connector NPT / CS Female Connector NPT

Stainless Steel Female Bulkhead Connector NPT, Female Bulkhead Connector NPT FBCN & MFBCN Stockist, Stainless Steel 304 Female Bulkhead Connector NPT FBCN & MFBCN, SS 316 Female Bulkhead Connector NPT FBCN & MFBCN, CS Female Bulkhead Connector NPT FBCN & MFBCN Manufacturer in Mumbai, India.

M Metal Tubes India Pvt Ltd is Prominent Supplier and Exporter of high quality Female Bulkhead Connector which are using high quality raw material. We offer Female Bulkhead Connector that are using national and international standards. These are used in a wide range of application industry. These are used in a wide range of application like Petrochemicals, Energy, CNG, Pharmaceutical, Pulp and Paper, Food, Mining, Biotechnology, Marine, Packing and Printing Industries etc. These SS Female Bulkhead Connector checked by the quality inspectors in order to deliver perfect quality range and to meet the diverse needs of our clients.

Brass Female Connector NPT, Monel Female Bulkhead Connector NPT FBCN & MFBCN Dealer, Hastelloy Female Bulkhead Connector NPT FBCN & MFBCN Exporter, MS Female Bulkhead Connector NPT FBCN & MFBCN Supplier, Bronze Female Bulkhead Connector NPT FBCN & MFBCN Wholesaler, Stockist in India.

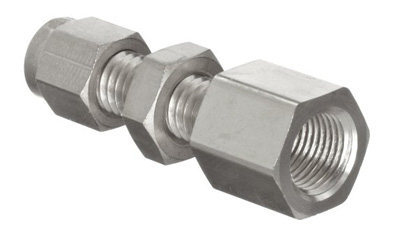

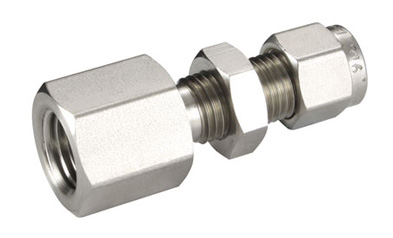

Stainless Steel Female Bulkhead Connector NPT FBCN & MFBCN

Stainless Steel Female Bulkhead Connector NPT FBCN & MFBCN

Monel Female Bulkhead Connector NPT FBCN & MFBCN

Monel Female Bulkhead Connector NPT FBCN & MFBCN

Female Bulkhead Connector NPT – Metric Tubing

Tube
O.D
(mm)		 NPT thread Part Number A C D L W
(inch)		 B’head hole drill size
(mm) 		Max b’head thichness
(mm) 		Min bore
(mm)
mm mm mm mm
6 1/8 6MFBC1/8N 47.2 33.7 39.7 26.2 5/8 11.5 10.2 4.8
6 1/4 6MFBC1/4N 52.0 33.7 44.5 26.2 3/4 11.5 10.2 4.8
8 1/8 8MFBC1/8N 49.6 36.1 42.1 28.5 11/16 13.1 11.2 6.4
10 1/4 10MFBC1/4N 55.2 37.0 47.6 29.4 13/16 16.3 11.2 7.9
12 3/8 12MFBC3/8N 60.9 41.9 50.8 31.8 15/16 19.5 12.7 9.5
12 1/2 12MFBC1/2N 66.4 41.9 56.3 31.8 1.1/16 19.5 12.7 9.5


Female Bulkhead Connector NPT – Imperial Tubing
Tube O.D
(inch)		 NPT thread Part Number A C D L W
(inch)		 B’head hole drill size
( inch)		 Max b’head thichness
(inch) 		Min
bore
(inch) (mm) inch mm inch mm inch mm inch mm
1/8 1/8 2FBC2N 1.75 44.5 1.22 31.0 1.50 38.1 0.97 24.6 9/16 21/64 0.50 0.09 2.3
3/16 1/8 3FBC2N 1.78 45.2 1.25 31.8 1.53 38.9 1.00 25.4 9/16 25/64 0.50 0.13 3.3
1/4 1/8 4FBC2N 1.86 47.2 1.33 33.8 1.56 39.6 1.03 26.2 5/8 29/64 0.40 0.19 4.8
1/4 1/4 4FBC4N 2.05 52.1 1.33 33.8 1.75 44.5 1.03 26.2 3/4 29/64 0.40 0.19 4.8
5/16 1/8 5FBC2N 1.95 49.5 1.41 35.8 1.66 42.2 1.12 28.5 11/16 33/64 0.44 0.25 6.4
5/16 1/2 5FBC8N 2.38 60.5 1.41 35.8 2.09 53.7 1.12 28.5 1.1/16 33/64 0.44 0.25 6.4
3/8 1/4 8FBC4N 2.17 55.1 1.45 36.8 1.88 47.8 1.16 29.5 3/4 37/64 0.44 0.28 7.1
1/2 3/8 8FBC6N 2.41 61.2 1.63 41.4 2.03 51.6 1.25 31.8 7/8 49/64 0.50
