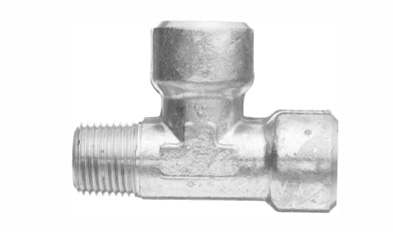

M Metal Tubes India Pvt Ltd is Prominent Supplier and Exporter of high quality Female Run Tee which are using high quality raw material. We offer Female Run Tee NPT FRTN that are using national and international standards. These are used in a wide range of application industry. These are used in a wide range of application like Petrochemicals, Energy, CNG, Pharmaceutical, Pulp and Paper, Food, Mining, Biotechnology, Marine, Packing and Printing Industries etc. These SS Female Run Tee NPT FRTN checked by the quality inspectors in order to deliver perfect quality range and to meet the diverse needs of our clients.
SS 316 Female Run Tee NPT FRTN, Brass Female Run Tee, Monel Female Run Tee NPT FRTN Dealer, Hastelloy Female Run Tee NPT FRTN Exporter, Bronze Female Run Tee NPT FRTN Wholesaler, Stockist in India.

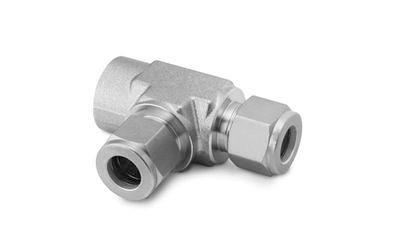

Stainless Steel Female Run Tee NPT FRTN
Monel Female Run Tee NPT FRTN
Metric tubing |
|||||||||||||
Tube O.D mm | NPT thread | Part Number | A | C | H | L | W | Min. bore | |||||
inch | mm | inch | mm | inch | mm | inch | mm | inch | inch | ||||
3 | 1/8 | 3MFRT1/8N | 1.75 | 44.45 | 1.00 | 25.40 | 0.75 | 19.05 | 0.75 | 19.05 | 9/16 | 0.09 | |
6 | 1/8 | 6MFRT1/8N | 1.83 | 46.48 | 1.08 | 27.43 | 0.75 | 19.05 | 0.78 | 19.81 | 9/16 | 0.19 | |
6 | 1/4 | 6MFRT1/4N | 2.05 | 52.07 | 1.21 | 30.73 | 0.84 | 21.34 | 0.91 | 23.11 | 3/4 | 0.19 | |
8 | 1/8 | 8MFRT1/8N | 1.85 | 46.99 | 1.10 | 27.94 | 0.75 | 19.05 | 0.81 | 20.57 | 9/16 | 0.25 | |
10 | 1/4 | 10MFRT1/4N | 2.10 | 53.34 | 1.26 | 32.00 | 0.84 | 21.34 | 0.97 | 24.64 | 3/4 | 0.28 | |
12 | 3/8 | 12MFRT3/8N | 2.32 | 58.93 | 1.41 | 35.81 | 0.91 | 23.11 | 1.03 | 26.16 | 7/8 | 0.41 | |
12 | 1/2 | 12MFRT1/2N | 2.64 | 67.06 | 1.51 | 38.35 | 1.31 | 33.27 | 1.13 | 28.70 | 1.1/16 | 0.41 | |
20 | 3/4 | 20MFRT3/4N | 2.88 |
Imperial Tubing |
|||||||||||||
Tube O.D | NPT thread | Part Number | A | C | H | L | W | Min. bore | |||||
inch | mm | inch | mm | inch | mm | inch | mm | inch | inch | inch | |||
1/8 | 1/8 | 2FRT2N | 1.75 | 44.45 | 1.00 | 25.40 | 0.75 | 19.05 | 0.75 | 19.05 | 9/16 | 0.09 | |
3/16 | 1/8 | 3FRT2N | 1.75 | 44.45 | 1.00 | 25.40 | 0.75 | 19.05 | 0.75 | 19.05 | 9/16 | 0.13 | |
1/4 | 1/8 | 4FRT2N | 1.83 | 46.48 | 1.08 | 27.43 | 0.75 | 19.05 | 0.78 | 19.81 | 9/16 | 0.19 | |
1/4 | 1/4 | 4FRT4N | 2.05 | 52.07 | 1.21 | 30.73 | 0.84 | 21.34 | 0.91 | 23.11 | 3/4 | 0.19 | |
5/16 | 1/8 | 5FRT2N | 1.85 | 46.99 | 1.10 | 27.94 | 0.75 | 19.05 | 0.81 | 20.57 | 9/16 | 0.25 | |
3/8 | 1/4 | 6FRT4N | 2.10 | 53.34 | 1.26 | 32.00 | 0.84 | 21.34 | 0.97 | 24.64 | 3/4 | 0.28 | |
1/2 | 3/8 | 8FRT6N | 2.32 | 58.93 | 1.41 | 35.81 | 0.91 | 23.11 | 1.03 | 26.16 | 7/8 | 0.41 | |
1/2 | 1/2 | 8FRT8N | 2.64 | 67.06 | 1.51 | 38.35 | 1.31 |
