M Metal Tubes India Pvt Ltd is Prominent Supplier and Exporter of high quality Male Branch Tee NPT MBTN & MMBTN which are using high quality raw material. This offered product is made using optimum quality material and advanced technology for longevity. We offer Stainless Steel 304, 316 Male Branch Tee NPT MBTN & MMBTN that are using national and international standards. These SS Male Branch Tee NPT MBTN & MMBTN checked by the quality inspectors in order to deliver perfect quality range and to meet the diverse needs of our clients.
Carbon Steel Male Branch Tee, Monel Male Branch Tee, CS Male Branch Tee Manufacturer, Bronze Male Branch Tee Dealer, Brass Male Branch Tee NPT MBTN & MMBTN Wholesaler, Hastelloy Male Branch Tee NPT MBTN & MMBTN Stockist in Mumbai, India.

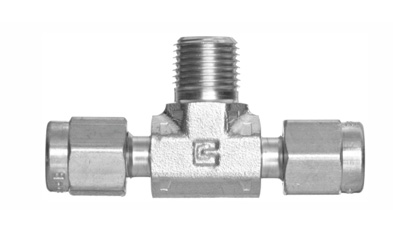

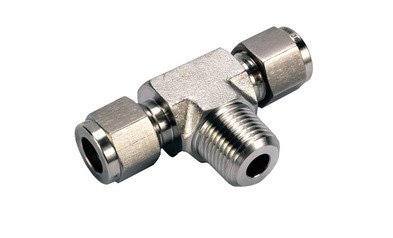

Stainless Steel Male Branch Tee NPT MBTN & MMBTN
Monel Male Branch Tee NPT MBTN & MMBTN
Male RUN TEE NPT – Metric tubing |
|||||||||||||||||||
Tube O.D mm |
NPT thread | Part Number | A | C | H | L | R | W inch |
Min bore mm |
||||||||||
mm | mm | mm | mm | mm | |||||||||||||||
6 | 1/8 | 6MMBT1/8N | 51.6 | 25.8 | 19.8 | 18.3 | 9.7 | 7/16 | 4.8 | ||||||||||
6 | 1/4 | 6MMBT1/4N | 54.6 | 27.3 | 23.8 | 19.8 | 14.2 | 9/16 | 4.8 | ||||||||||
8 | 1/8 | 8MMBT1/8N | 56.2 | 28.1 | 20.6 | 20.6 | 9.7 | 9/16 | 4.8 | ||||||||||
8 | 1/4 | 8MMBT1/4N | 56.2 | 28.1 | 25.4 | 20.6 | 14.2 | 9/16 | 6.4 | ||||||||||
10 | 1/4 | 10MMBT1/4N | 66.0 | 33.0 | 28.6 | 25.4 | 14.2 | 3/4 | 7.9 | ||||||||||
10 | 3/8 | 10MMBT3/8N | 66.0 | 33.0 | 28.6 | 25.4 | 14.2 | 3/4 | 7.9 | ||||||||||
12 | 1/4 | 12MMBT1/4N | 69.4 | 34.7 | 28.6 | 24.6 | 14.2 | 3/4 | 9.5 | ||||||||||
12 | 3/8 | 12MMBT3/8N | 69.4 | 34.7 | 28.6 | 24.6 | 14.2 | 3/4 | 9.5 | ||||||||||
12 | 1/2 | 12MMBT1/2N | 72.6 | 36.3 | 33.3 | 26.2 | 19.1 | 7/8 | 9.5 |
Male RUN TEE NPT – Imperial Tubing |
|||||||||||||||||||
Tube O.D inch |
NPT thread | Part Number | A | C | H | L | R | W inch |
Min bore | Min. Bore | |||||||||
inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch |
inch |
mm |
|||||||
1/8 | 1/8 | 2MBT2N | 1.82 | 46.2 | 0.91 | 23.1 | 0.72 | 18.3 | 0.66 | 16.8 | 0.34 | 8.6 | 5/16 | 0.09 | 0.09 | 2.3 | |||
3/16 | 1/8 | 3MBT2N | 1.88 | 47.8 | 0.94 | 24.6 | 0.75 | 19.1 | 0.69 | 17.5 | 0.38 | 9.7 | 7/16 | 0.13 | 0.13 | 3.3 | |||
1/4 | 1/8 | 4MBT2N | 2.03 | 51.6 | 1.02 | 25.9 | 0.78 | 19.8 | 0.72 | 18.3 | 0.38 | 9.7 | 7/16 | 0.19 | 0.19 | 4.8 | |||
1/4 | 1/4 | 4MBT4N | 2.15 | 54.6 | 1.08 | 27.4 | 0.94 | 23.9 | 0.78 | 19.5 | 0.56 | 14.2 | 9/16 | 0.19 | 0.19 | 4.8 | |||
5/16 | 1/8 | 5MBT2N | 2.21 | 56.1 | 1.10 | 27.9 | 0.81 | 20.6 | 0.81 | 20.6 | 0.38 | 9.7 | 9/16 | 0.19 | 0.19 | 4.8 | |||
5/16 | 1/4 | 5MBT4N | 2.21 | 56.1 | 1.10 | 27.9 | 1.00 | 25.4 | 0.81 | 20.6 | 0.56 | 14.2 | 9/16 | 0.25 | 0.25 | 6.4 | |||
3/8 | 1/4 | 6MBT4N | 2.27 | 57.7 | 1.13 | 28.9 | 1.00 | 25.4 | 0.84 | 21.3 | 0.56 | 14.2 | 9/16 | 0.28 | 0.28 | 7.1 | |||
3/8 | 3/8 | 6MBT6N | 2.53 |
