M Metal Tubes India Pvt Ltd is Prominent Supplier and Exporter of high quality Male Elbow NPT 45 degree NPT METN & MMETN which are using high quality raw material. This offered product is made using optimum quality material and advanced technology for longevity. We offer Stainless Steel 304, 316 Male 45degree Elbow that are using national and international standards. These SS Male 45 Deg. Elbow checked by the quality inspectors in order to deliver perfect quality range and to meet the diverse needs of our clients.
Stainless Steel Male Elbow NPT 45, Monel Male Elbow NPT 45°, CS Male Elbow NPT 45 Degree Manufacturer, Bronze Male Elbow NPT 45 Dealer, Brass Male Elbow NPT 45 deg. Wholesaler, Hastelloy Male Elbow NPT 45 Stockist in Mumbai, India.

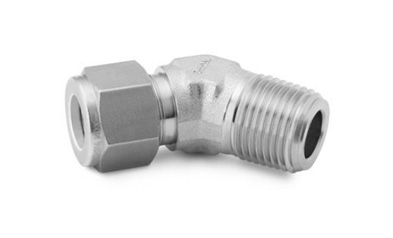

Stainless Steel Male Elbow NPT 45° NPT METN & MMETN
Monel Male Elbow NPT 45° NPT METN & MMETN
|
Male Elbow NPT 45 – Imperial Tubing |
|||||||||||||||||
Tube O.D inch |
NPT thread | Part Number | C | L | P | R | W inch |
Min bore | |||||||||
inch | mm | inch | mm | inch | mm | inch | mm | mm | inch | mm | |||||||
1/16 | 1/16 | 1MET1N | 0.58 | 14.7 | 0.44 | 11.2 | 0.56 | 14.2 | 0.38 | 9.7 | 9.7 | 3/8 | 0.05 | 1.3 | |||
1/8 | 1/8 | 2MET2N | 0.78 | 19.8 | 0.53 | 13.5 | 0.52 | 13.2 | 0.38 | 9.7 | 9.7 | 7/16 | 0.09 | 2.3 | |||
3/16 | 1/8 | 3MET2N | 0.81 | 20.6 | 0.56 | 14.2 | 0.58 | 14.7 | 0.38 | 9.7 | 9.7 | 7/16 | 0.13 | 3.3 | |||
1/4 | 1/8 | 4MET2N | 0.93 | 23.6 | 0.63 | 16.0 | 0.66 | 16.8 | 0.38 | 9.7 | 9.7 | 9/16 | 0.19 | 4.8 | |||
1/4 | 1/4 | 4MET4N | 0.96 | 24.4 | 0.66 | 16.8 | 0.86 | 21.8 | 0.56 | 14.2 | 14.2 | 9/16 | 0.19 | 4.8 | |||
5/16 | 1/8 | 5MET2N | 0.95 | 24.1 | 0.66 | 16.8 | 0.66 | 16.8 | 0.38 | 9.7 | 9.7 | 9/16 | 0.19 | 4.8 | |||
3/8 | 1/4 | 6MET4N | 1.01 | 25.7 | 0.72 | 18.3 | 0.86 | 21.8 | 0.56 | 14.2 | 14.2 | 9/16 | 0.28 | 7.1 | |||
1/2 | 3/8 | 8MET6N | 1.13 | 28.7 | 0.75 | 19.1 | 0.95 | 24.1 | 0.56 | 14.2 | 14.2 | 3/4 |
